Periodic Phenomena


Let's begin by "looking" at a familiar periodic phenomena:

In[81]:=

Cfreq = 261.6 ;

Dfreq = 293.7 ;

Efreq = 329.6 ;

Ffreq = 349.2 ;

Gfreq = 392. ;

Afreq = 440. ;

Bfreq = 493.9 ;

Note[freq_] := Sin[ 2 Pi freq t] ;

CNote = Note[Cfreq] ;

DNote = Note[Dfreq] ;

ENote = Note[Efreq] ;

FNote = Note[Ffreq] ;

GNote = Note[Gfreq] ;

ANote = Note[Afreq] ;

BNote = Note[Bfreq] ;

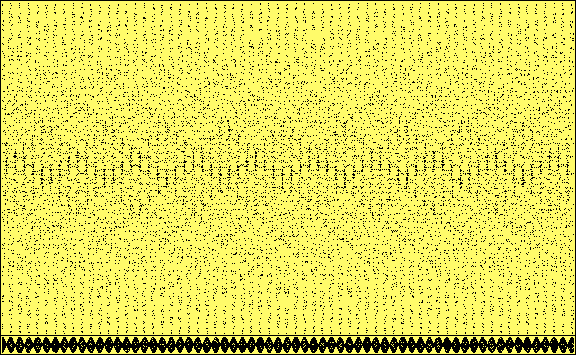

Csound = Play[{CNote, DNote}, {t, 0, 2}]

[Graphics:HTMLFiles/Lecture-17_17.gif]

Out[96]=

Sound

In[97]:=

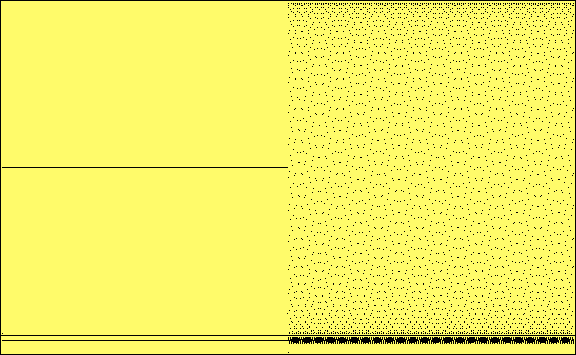

Play [ If [ t > 0.5 , CNote , 0 ] , { t , 0 , 1 } ]

[Graphics:HTMLFiles/Lecture-17_18.gif]

Out[97]=

Sound

Let's see if we can play this:    l[Graphics:HTMLFiles/Lecture-17_19.gif]

In[98]:=

Beats [ list_ , duration_ , cadence_ ] := Table [ If [ t ( i - 1 ) * cadence && t ( i - 1 ) * cadence + duration , Evaluate [ list [ [ i ] ] ] , 0 ] , { i , 1 , Length [ list ] } ]

In[99]:=

twoframes = { ENote , ENote , FNote , GNote , GNote , FNote , ENote , DNote , CNote , CNote , DNote , ENote }

Out[99]=

{ Sin [ 2070.937877246392 t ] , Sin [ 2070.937877246392 t ] , Sin [ 2194.0883092671115 t ] , Sin [ 2463.0086404143976 t ] , Sin [ 2463.0086404143976 t ] , Sin [ 2194.0883092671115 t ] , Sin [ 2070.937877246392 t ] , Sin [ 1845.3715247186444 t ] , Sin [ 1643.68127635818 t ] , Sin [ 1643.68127635818 t ] , Sin [ 1845.3715247186444 t ] , Sin [ 2070.937877246392 t ] }

In[102]:=

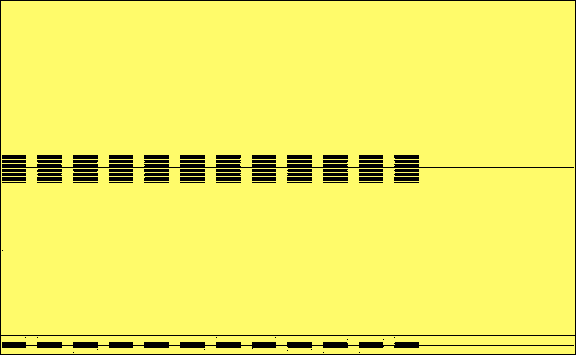

Play [ Evaluate [ Beats [ twoframes , 0.5 , 0.75 ] ] , { t , 0 , 12 } ]

[Graphics:HTMLFiles/Lecture-17_20.gif]

Out[102]=

Sound

In[110]:=

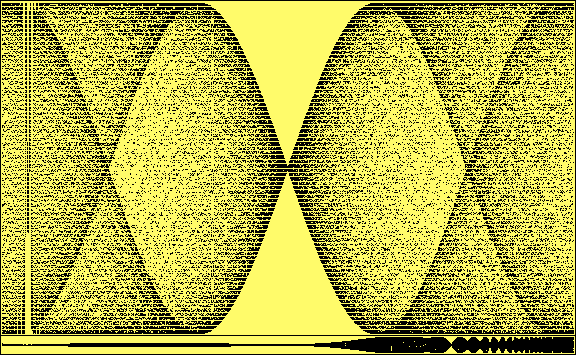

Play [ Sin [ x Sin [ 3000 ( Exp [ x ] + Sin [ x ] / x ) ] ] , { x , - 5 , 5 } ]

[Graphics:HTMLFiles/Lecture-17_21.gif]

Power :: infy : Infinite expression 1 0. encountered. More… "Infinite expression \\!\\(1\\/0.`\\) encountered. \\!\\(\\*ButtonBox[\\\"More\[Ellipsis]\\\", ButtonStyle->\\\"RefGuideLinkText\\\", ButtonFrame->None, ButtonData:>\\\"Power::infy\\\"]\\)"

:: indet : Indeterminate expression 0. ComplexInfinity encountered. More… "Indeterminate expression \\!\\(0.`\\\\ ComplexInfinity\\) encountered. \\!\\(\\*ButtonBox[\\\"More\[Ellipsis]\\\", ButtonStyle->\\\"RefGuideLinkText\\\", ButtonFrame->None, ButtonData:>\\\"General::indet\\\"]\\)"

Out[110]=

Sound

Fourier Series

Define a function that is periodic  with wavelength λ using the modulus function:

Boomerang uses Mod to force a function, f, with a single argument, x, to be periodic with wavelength λ

Boomerang [ f_ , x_ , λ_ ] := f [ Mod [ x , λ ] ]

AFunction [ x_ ] := ( ( 3 - x ) ^ 3 ) / 27

General :: spell1 : Possible spelling error: new symbol name \" AFunction \" is similar to existing symbol \" Function \". More… "Possible spelling error: new symbol name \\\"\\!\\(AFunction\\)\\\" is similar to existing symbol \\\"\\!\\(Function\\)\\\". \\!\\(\\*ButtonBox[\\\"More\[Ellipsis]\\\", ButtonStyle->\\\"RefGuideLinkText\\\", ButtonFrame->None, ButtonData:>\\\"General::spell1\\\"]\\)"

The following step uses Boomerang to produce a periodic repetition of AFunction over the range 0 < x < 6:

General :: spell1 : Possible spelling error: new symbol name \" AFunction \" is similar to existing symbol \" Function \". More… "Possible spelling error: new symbol name \\\"\\!\\(AFunction\\)\\\" is similar to existing symbol \\\"\\!\\(Function\\)\\\". \\!\\(\\*ButtonBox[\\\"More\[Ellipsis]\\\", ButtonStyle->\\\"RefGuideLinkText\\\", ButtonFrame->None, ButtonData:>\\\"General::spell1\\\"]\\)"

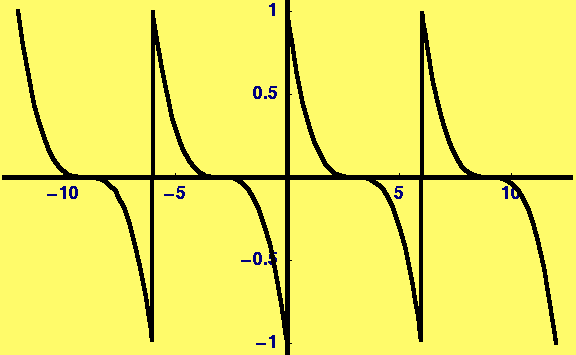

Plot [ Boomerang [ AFunction , x , 6 ] , { x , - 12 , 12 } , PlotRange All ]

[Graphics:HTMLFiles/Lecture-17_22.gif]

Graphics

Fourier Series

Demonstration of the orthogonality of the trigonometric functions

coscos = Integrate [ Cos [ 2 π Minteger x λ ] Cos [ 2 π Ninteger x λ ] , { x , xo , xo + λ } , Assumptions { Minteger ϵ Integers , Ninteger Integers , xo Reals , λ > 0 } ]

1 4 ( Minteger 2 - Ninteger 2 ) π ( λ ( - ( Minteger + Ninteger ) Sin [ 2 ( Minteger - Ninteger ) π xo λ ] + ( - Minteger + Ninteger ) Sin [ 2 ( Minteger + Ninteger ) π xo λ ] + Minteger Sin [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] + Ninteger Sin [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] + Minteger Sin [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] - Ninteger Sin [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] ) )

Simplify [ coscos /. { Minteger 4 , Ninteger 34 } ]

0

Assuming [ Minteger ϵ Integers && Ninteger Integers && xo Reals && λ Reals , Limit [ coscos , Minteger Ninteger ] ]

λ 2

cossin = Integrate [ Cos [ 2 π Minteger x λ ] Sin [ 2 π Ninteger x λ ] , { x , xo , xo + λ } , Assumptions { Minteger ϵ Integers , Ninteger Integers , xo Reals , λ > 0 } ]

- 1 4 ( Minteger 2 - Ninteger 2 ) π ( λ ( ( Minteger + Ninteger ) Cos [ 2 ( Minteger - Ninteger ) π xo λ ] + ( - Minteger + Ninteger ) Cos [ 2 ( Minteger + Ninteger ) π xo λ ] - Minteger Cos [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] - Ninteger Cos [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] + Minteger Cos [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] - Ninteger Cos [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] ) )

Simplify [ cossin /. { Minteger - 7 , Ninteger 35 } ]

0

Assuming [ Minteger ϵ Integers && Ninteger Integers && xo Reals && λ Reals , Limit [ cossin , Minteger Ninteger ] ]

0

sinsin = Integrate [ Sin [ 2 π Minteger x λ ] Sin [ 2 π Ninteger x λ ] , { x , xo , xo + λ } , Assumptions { Minteger ϵ Integers , Ninteger Integers , xo Reals , λ > 0 } ]

- 1 4 ( Minteger 2 - Ninteger 2 ) π ( λ ( ( Minteger + Ninteger ) Sin [ 2 ( Minteger - Ninteger ) π xo λ ] + ( - Minteger + Ninteger ) Sin [ 2 ( Minteger + Ninteger ) π xo λ ] - Minteger Sin [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] - Ninteger Sin [ 2 ( Minteger - Ninteger ) π ( xo + λ ) λ ] + Minteger Sin [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] - Ninteger Sin [ 2 ( Minteger + Ninteger ) π ( xo + λ ) λ ] ) )

Simplify [ sinsin /. { Minteger 10 , Ninteger 9 } ]

0

Assuming [ Minteger ϵ Integers && Ninteger Integers && xo Reals && λ Reals , Limit [ sinsin , Minteger Ninteger ] ]

λ 2

Example of determination of fourier coefficients

First we will "do it the hard way" and write short programs that evaluate Fourier coefficients; then we will demonstrate how to make use of built-in functions in Mathematica's FourierTransform package…

Define functions based on the formulas derived for the fourier amplitudes

The constant term:

EvenTerms [ 0 , function_ , wavelength_ ] := 1 wavelength 0 wavelength function [ dummy ] dummy

A function that defines each even amplitude individually (this is not very efficient, it would be better to evaluate the integral once and use that result)

EvenTerms [ SP_Integer , function_ , wavelength_ ] := EvenTerms [ SP , function , wavelength ] = 2 wavelength 0 wavelength function [ dummy ] Cos [ 2 SP π dummy wavelength ] dummy

Define the zeroth odd term as zero for symmetry with the even terms:

OddTerms [ 0 , function_ , wavelength_ ] := 0

OddTerms [ SP_Integer , function_ , wavelength_ ] := OddTerms [ SP , function , wavelength ] = 2 wavelength 0 wavelength function [ dummy ] Sin [ 2 SP π dummy wavelength ] dummy

A function to create a vector of amplitudes for the odd terms and one for the even terms

OddAmplitudeVector [ NTerms_Integer , function_ , wavelength_ ] := Table [ OddTerms [ i , function , wavelength ] , { i , 0 , NTerms } ]

EvenAmplitudeVector [ NTerms_Integer , function_ , wavelength_ ] := Table [ EvenTerms [ i , function , wavelength ] , { i , 0 , NTerms } ]

Define a function to use as an example:

myfunction [ x_ ] := ( x * ( 2 - x ) * ( 1 - x ) ^ 2 )

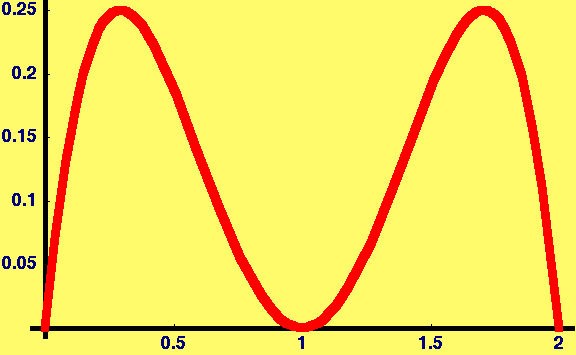

OriginalPlot = Plot [ myfunction [ x ] , { x , 0 , 2 } , PlotStyle { Hue [ 1 ] , Thickness [ 0.015 ] } ]

[Graphics:HTMLFiles/Lecture-17_23.gif]

Graphics

Now calculate Fourier amplitudes for this function…

EvenAmplitudeVector [ 6 , myfunction , 2 ]

{ 2 15 , 48 - 4 π 2 π 4 , 3 - π 2 π 4 , - 4 ( - 4 + 3 π 2 ) 27 π 4 , 3 - 4 π 2 16 π 4 , 48 - 100 π 2 625 π 4 , 1 - 3 π 2 27 π 4 }

The odd terms should all vanish because the function is even around the center x= λ 2

OddAmplitudeVector [ 6 , myfunction , 2 ]

{ 0 , 0 , 0 , 0 , 0 , 0 , 0 }

OddBasisVector [ NTerms_Integer , var_ , wavelength_ ] := Table [ Sin [ 2 π i var wavelength ] , { i , 0 , NTerms } ]

OddBasisVector [ 6 , x , 2 ]

{ 0 , Sin [ π x ] , Sin [ 2 π x ] , Sin [ 3 π x ] , Sin [ 4 π x ] , Sin [ 5 π x ] , Sin [ 6 π x ] }

EvenBasisVector [ NTerms_Integer , var_ , wavelength_ ] := Table [ Cos [ 2 π i var wavelength ] , { i , 0 , NTerms } ]

EvenBasisVector [ 6 , x , 2 ]

{ 1 , Cos [ π x ] , Cos [ 2 π x ] , Cos [ 3 π x ] , Cos [ 4 π x ] , Cos [ 5 π x ] , Cos [ 6 π x ] }

Make the Fourier series representation by taking the dot product of the AmplitudeVectors with the BasisVectors:

FourierTruncSeries [ n_ , function_ , var_ , wavelength_ ] := EvenAmplitudeVector [ n , function , wavelength ] . EvenBasisVector [ n , var , wavelength ] + OddAmplitudeVector [ n , function , wavelength ] . OddBasisVector [ n , var , wavelength ]

For myfunction we write the Fourier series out to six terms as:

FourierTruncSeries [ 6 , myfunction , x , 2 ]

2 15 + ( 48 - 4 π 2 ) Cos [ π x ] π 4 + ( 3 - π 2 ) Cos [ 2 π x ] π 4 - 4 ( - 4 + 3 π 2 ) Cos [ 3 π x ] 27 π 4 + ( 3 - 4 π 2 ) Cos [ 4 π x ] 16 π 4 + ( 48 - 100 π 2 ) Cos [ 5 π x ] 625 π 4 + ( 1 - 3 π 2 ) Cos [ 6 π x ] 27 π 4

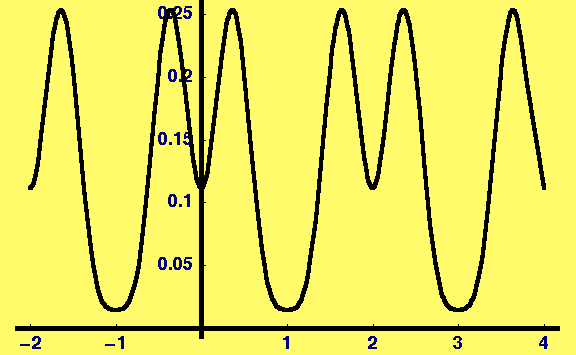

FourierPlot = Plot [ FourierTruncSeries [ 3 , myfunction , x , 2 ] , { x , - 2 , 4 } ]

[Graphics:HTMLFiles/Lecture-17_24.gif]

Graphics

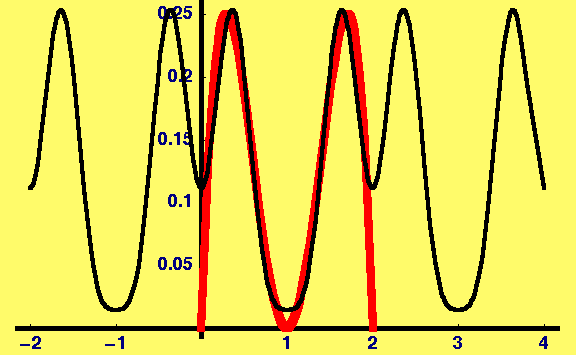

Note the periodicity of the plot above.  The wavelength is 2. Only three terms were calculated in the Fourier series representation of myfunction. Below the Fourier series and the exact function are shown superposed.

Show [ OriginalPlot , FourierPlot ]

[Graphics:HTMLFiles/Lecture-17_25.gif]

Graphics

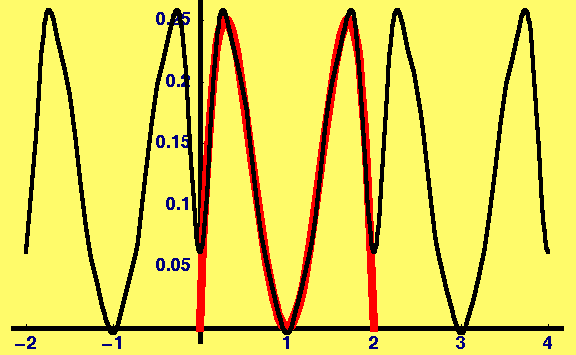

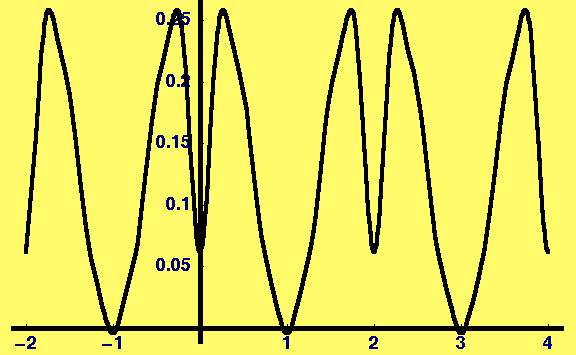

Now the calculation is repeated but retaining 6 terms in the Fourier series representation and hopefully obtaining a more accurate representation of myfunction.

FourierPlot = Plot [ FourierTruncSeries [ 6 , myfunction , x , 2 ] , { x , - 2 , 4 } ]

[Graphics:HTMLFiles/Lecture-17_26.gif]

Graphics

Show [ OriginalPlot , FourierPlot ]

[Graphics:HTMLFiles/Lecture-17_27.gif]

Graphics

Fourier Series Coefficients using Mathematica's package:

<< Calculus`FourierTransform`

AFunction [ x_ ] := ( x - 3 ) ^ 3 27

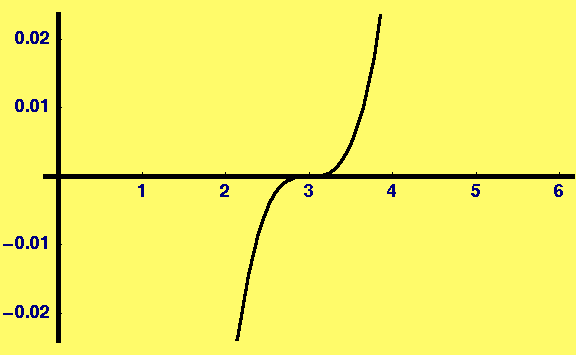

Plot [ AFunction [ x ] , { x , 0 , 6 } ]

[Graphics:HTMLFiles/Lecture-17_28.gif]

Graphics

Mathematica's Fourier Series functions are defined for function that are periodic in the domain x ∈ (-1/2,1/2).  So we need to map the periodic functions to this domain

ReduceHalfHalf [ f_ , x_ , λ_ ] := f [ ( x + 1 / 2 ) * λ ]

ReducedFunction = ReduceHalfHalf [ AFunction , x , 6 ] // Simplify

8 x 3

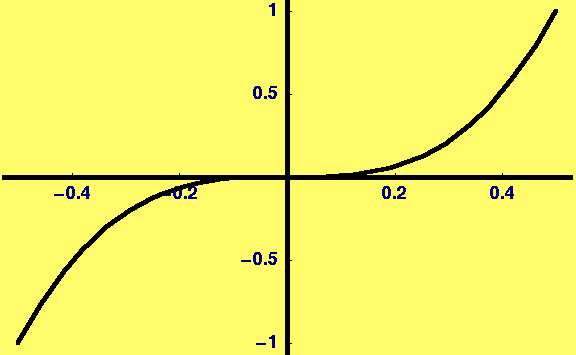

Plot [ ReducedFunction , { x , - 1 / 2 , 1 / 2 } , PlotRange All ]

[Graphics:HTMLFiles/Lecture-17_29.gif]

Graphics

FourierCosCoefficient [ ReducedFunction , x , n ]

0

FourierSinCoefficient [ ReducedFunction , x , n ]

2 ( - 1 ) n ( 6 - n 2 π 2 ) n 3 π 3

FourierTrigSeries [ ReducedFunction , x , 5 ]

2 ( - 6 + π 2 ) Sin [ 2 π x ] π 3 + ( 3 - 2 π 2 ) Sin [ 4 π x ] 2 π 3 + 2 ( - 2 + 3 π 2 ) Sin [ 6 π x ] 9 π 3 + ( 3 - 8 π 2 ) Sin [ 8 π x ] 16 π 3 + 2 ( - 6 + 25 π 2 ) Sin [ 10 π x ] 125 π 3

AnimateTruncatedFourierSeriesVersionOne [ function_ , { truncationstart_ , truncationend_ , truncjump_ } ] := Table [ Plot [ Evaluate [ FourierTrigSeries [ function , x , itrunc ] ] , { x , - 1 , 1 } , PlotRange { - 2 , 2 } ] , { itrunc , truncationstart , truncationend , truncjump } ] ;

The function above will work, but it is horribly inefficient!  Because it asks FourierTrigSeries to calculate one more term each time, it is doing some redundant work.  We can fix this up by having
it calculate one new term and adding to the sum calculated previously. Here it is:

AnimateTruncatedFourierSeriesVersionTwo [ function_ , { truncationstart_ , truncationend_ } ] := Module [ { coscof , sincof , currentappx , n , TwoPi = 2 π } , currentappx = FourierCosCoefficient [ function , x , 0 ] ; coscof [ n_ ] = Simplify [ FourierCosCoefficient [ function , x , n ] ] ; sincof [ n_ ] = Simplify [ FourierSinCoefficient [ function , x , n ] ] ; Table [ Plot [ Evaluate [ currentappx += coscof [ itrunc ] * Cos [ TwoPi itrunc x ] + sincof [ itrunc ] * Sin [ TwoPi itrunc x ] ] , { x , - 1 , 1 } , PlotRange { - 2 , 2 } ] , { itrunc , truncationstart , truncationend } ] ; ]

General :: spell1 : Possible spelling error: new symbol name \" coscof \" is similar to existing symbol \" coscos \". More… "Possible spelling error: new symbol name \\\"\\!\\(coscof\\)\\\" is similar to existing symbol \\\"\\!\\(coscos\\)\\\". \\!\\(\\*ButtonBox[\\\"More\[Ellipsis]\\\", ButtonStyle->\\\"RefGuideLinkText\\\", ButtonFrame->None, ButtonData:>\\\"General::spell1\\\"]\\)"

The following will demonstrate how convergence is difficult where the function changes rapidly---this is known as Gibbs' Phenomenon

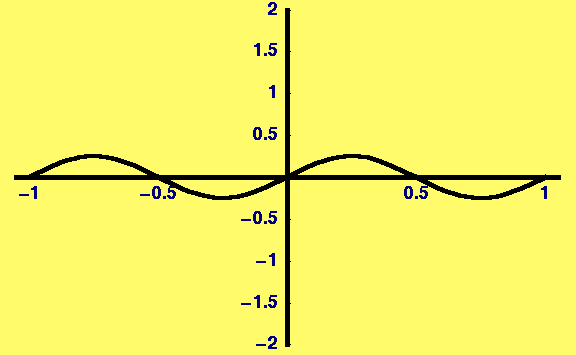

AnimateTruncatedFourierSeriesVersionTwo [ ReducedFunction , { 1 , 60 } ]

[Graphics:HTMLFiles/Lecture-17_90.gif]

Recall the definition used above for myfunction

myfunction [ x ]

( 1 - x ) 2 ( 2 - x ) x

Reduce myfunction to a domain so that we can use Mathematica's Fourier Package on it.

ReducedMyFunction = ReduceHalfHalf [ myfunction , x , 2 ] // Simplify

4 x 2 - 16 x 4

General form of the even amplitudes

myfunccos = FourierCosCoefficient [ 4 x 2 - 16 x 4 , x , n ]

- 4 ( - 1 ) n ( - 12 + n 2 π 2 ) n 4 π 4

FourierSinCoefficient [ 4 x 2 - 16 x 4 , x , n ]

0

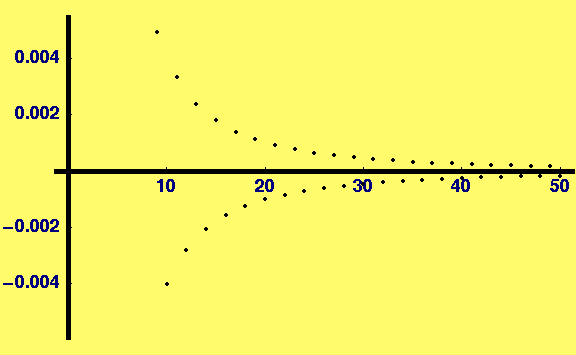

Illustrate how amplitude of each term behaves. This plot indicates that the short wavelength contributions are smaller and smaller.

ListPlot [ Table [ myfunccos , { n , 1 , 50 } ] ]

[Graphics:HTMLFiles/Lecture-17_91.gif]

Graphics

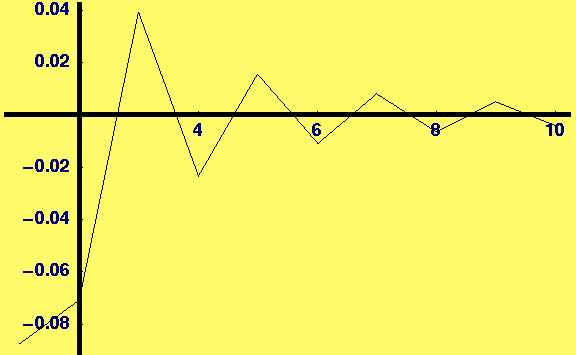

ListPlot [ Table [ myfunccos , { n , 1 , 10 } ] , PlotJoined True , PlotRange All ]

[Graphics:HTMLFiles/Lecture-17_92.gif]

Graphics
