Reading 13: Abstraction Functions & Rep Invariants

Later in this reading, we’ll see many interesting invariants. Let’s focus on immutability for now. Here’s a specific example:

/**
 * This immutable data type represents a tweet from Twitter.
 */
public class Tweet {

    public String author;
    public String text;
    public Date timestamp;

    /**
     * Make a Tweet.
     * @param author    Twitter user who wrote the tweet
     * @param text      text of the tweet
     * @param timestamp date/time when the tweet was sent
     */
    public Tweet(String author, String text, Date timestamp) {
        this.author = author;
        this.text = text;
        this.timestamp = timestamp;
    }
}

How do we guarantee that these Tweet objects are immutable – that, once a tweet is created, its author, message, and date can never be changed?

The first threat to immutability comes from the fact that clients can — in fact must — directly access its fields. So nothing’s stopping us from writing code like this:

Tweet t = new Tweet("justinbieber",
                    "Thanks to all those beliebers out there inspiring me every day",
                    new Date());
t.author = "rbmllr";

This is a trivial example of representation exposure , meaning that code outside the class can modify the representation directly. Rep exposure like this threatens not only invariants, but also representation independence. We can’t change the implementation of Tweet without affecting all the clients who are directly accessing those fields.

Fortunately, Java gives us language mechanisms to deal with this kind of rep exposure:

public class Tweet {

    private final String author;
    private final String text;
    private final Date timestamp;

    public Tweet(String author, String text, Date timestamp) {
        this.author = author;
        this.text = text;
        this.timestamp = timestamp;
    }

    /** @return Twitter user who wrote the tweet */
    public String getAuthor() {
        return author;
    }

    /** @return text of the tweet */
    public String getText() {
        return text;
    }

    /** @return date/time when the tweet was sent */
    public Date getTimestamp() {
        return timestamp;
    }

}

The private and public keywords indicate which fields and methods are accessible only within the class and which can be accessed from outside the class. The final keyword also helps by guaranteeing that the fields of this immutable type won’t be reassigned after the object is constructed.

But that’s not the end of the story: the rep is still exposed! Consider this perfectly reasonable client code that uses Tweet :

/** @return a tweet that retweets t, one hour later*/
public static Tweet retweetLater(Tweet t) {
    Date d = t.getTimestamp();
    d.setHours(d.getHours()+1);
    return new Tweet("rbmllr", t.getText(), d);
}

retweetLater takes a tweet and should return another tweet with the same message (called a retweet ) but sent an hour later. The retweetLater method might be part of a system that automatically echoes funny things that Twitter celebrities say.

What’s the problem here? The getTimestamp call returns a reference to the same Date object referenced by tweet t . t.timestamp and d are aliases to the same mutable object. So when that date object is mutated by d.setHours() , this affects the date in t as well, as shown in the snapshot diagram.

Tweet ’s immutability invariant has been broken. The problem is that Tweet leaked out a reference to a mutable object that its immutability depended on. We exposed the rep, in such a way that Tweet can no longer guarantee that its objects are immutable. Perfectly reasonable client code created a subtle bug.

We can patch this kind of rep exposure by using defensive copying: making a copy of a mutable object to avoid leaking out references to the rep. Here’s the code:

public Date getTimestamp() {
    return new Date(timestamp.getTime());
}

Mutable types often have a copy constructor that allows you to make a new instance that duplicates the value of an existing instance. In this case, Date ’s copy constructor uses the timestamp value, measured in milliseconds since January 1, 1970. As another example, StringBuilder ’s copy constructor takes a String . Another way to copy a mutable object is clone() , which is supported by some types but not all. There are unfortunate problems with the way clone() works in Java. For more, see Josh Bloch, Effective Java , item 11.

So we’ve done some defensive copying in the return value of getTimestamp . But we’re not done yet! There’s still rep exposure. Consider this (again perfectly reasonable) client code:

/** @return a list of 24 inspiring tweets, one per hour today */
public static List<Tweet> tweetEveryHourToday () {
    List<Tweet> list = new ArrayList<Tweet>();
    Date date = new Date();
    for (int i = 0; i < 24; i++) {
        date.setHours(i);
        list.add(new Tweet("rbmllr", "keep it up! you can do it", date));
    }
    return list;
}

This code intends to advance a single Date object through the 24 hours of a day, creating a tweet for every hour. But notice that the constructor of Tweet saves the reference that was passed in, so all 24 Tweet objects end up with the same time, as shown in this snapshot diagram.

Again, the immutability of Tweet has been violated. We can fix this problem too by using judicious defensive copying, this time in the constructor:

public Tweet(String author, String text, Date timestamp) {
    this.author = author;
    this.text = text;
    this.timestamp = new Date(timestamp.getTime());
}

In general, you should carefully inspect the argument types and return types of all your ADT operations. If any of the types are mutable, make sure your implementation doesn’t return direct references to its representation. Doing that creates rep exposure.

You may object that this seems wasteful. Why make all these copies of dates? Why can’t we just solve this problem by a carefully written specification, like this?

/**
 * Make a Tweet.
 * @param author    Twitter user who wrote the tweet
 * @param text      text of the tweet
 * @param timestamp date/time when the tweet was sent. Caller must never
 *                   mutate this Date object again!
 */
public Tweet(String author, String text, Date timestamp) {

This approach is sometimes taken when there isn’t any other reasonable alternative – for example, when the mutable object is too large to copy efficiently. But the cost in your ability to reason about the program, and your ability to avoid bugs, is enormous. In the absence of compelling arguments to the contrary, it’s almost always worth it for an abstract data type to guarantee its own invariants, and preventing rep exposure is essential to that.

An even better solution is to prefer immutable types. If – as recommended in Mutability & Immutability ’s Groundhog Day example – we had used an immutable date object, like java.time.ZonedDateTime , instead of the mutable java.util.Date , then we would have ended this section after talking about public and private . No further rep exposure would have been possible.

The Java collections classes offer an interesting compromise: immutable wrappers.

Collections.unmodifiableList() takes a (mutable) List and wraps it with an object that looks like a List , but whose mutators are disabled – set() , add() , remove() , etc. throw exceptions. So you can construct a list using mutators, then seal it up in an unmodifiable wrapper (and throw away your reference to the original mutable list, as discussed in Mutability & Immutability ), and get an immutable list.

The downside here is that you get immutability at runtime, but not at compile time. Java won’t warn you at compile time if you try to sort() this unmodifiable list. You’ll just get an exception at runtime. But that’s still better than nothing, so using unmodifiable lists, maps, and sets can be a very good way to reduce the risk of bugs.

Here’s an example of an abstract data type for rational numbers. Look closely at its rep invariant and abstraction function.

public class RatNum {

    private final int numer;
    private final int denom;

    // Rep invariant:
    //   denom > 0
    //   numer/denom is in reduced form

    // Abstraction Function:
    //   represents the rational number numer / denom

    /** Make a new Ratnum == n.
     *  @param n value */
    public RatNum(int n) {
        numer = n;
        denom = 1;
        checkRep();
    }

    /** Make a new RatNum == (n / d).
     *  @param n numerator
     *  @param d denominator
     *  @throws ArithmeticException if d == 0 */
    public RatNum(int n, int d) throws ArithmeticException {
        // reduce ratio to lowest terms
        int g = gcd(n, d);
        n = n / g;
        d = d / g;

        // make denominator positive
        if (d < 0) {
            numer = -n;
            denom = -d;
        } else {
            numer = n;
            denom = d;
        }
        checkRep();
    }
}

Here is a picture of the abstraction function and rep invariant for this code. The RI requires that numerator/denominator pairs be in reduced form (i.e., lowest terms), so pairs like (2,4) and (18,12) above should be drawn as outside the RI.

It would be completely reasonable to design another implementation of this same ADT with a more permissive RI. With such a change, some operations might become more expensive to perform, and others cheaper.

The rep invariant isn’t just a neat mathematical idea. If your implementation asserts the rep invariant at run time, then you can catch bugs early. Here’s a method for RatNum that tests its rep invariant:

// Check that the rep invariant is true
// *** Warning: this does nothing unless you turn on assertion checking
// by passing -enableassertions to Java
private void checkRep() {
    assert denom > 0;
    assert gcd(numer, denom) == 1;
}

You should certainly call checkRep() to assert the rep invariant at the end of every operation that creates or mutates the rep – in other words, creators, producers, and mutators. Look back at the RatNum code above, and you’ll see that it calls checkRep() at the end of both constructors.

Observer methods don’t normally need to call checkRep() , but it’s good defensive practice to do so anyway. Why? Calling checkRep() in every method, including observers, means you’ll be more likely to catch rep invariant violations caused by rep exposure.

Why is checkRep private? Who should be responsible for checking and enforcing a rep invariant – clients, or the implementation itself?

Recall from the Specifications reading that null values are troublesome and unsafe, so much so that we try to remove them from our programming entirely. In 6.005, the preconditions and postconditions of our methods implicitly require that objects and arrays be non-null.

We extend that prohibition to the reps of abstract data types. By default, in 6.005, the rep invariant implicitly includes x != null for every reference x in the rep that has object type (including references inside arrays or lists). So if your rep is:

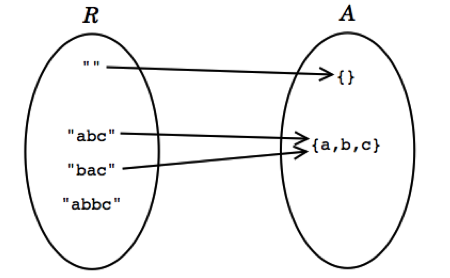

class CharSet {
    String s;
}

then its rep invariant automatically includes s != null , and you don’t need to state it in a rep invariant comment.

When it’s time to implement that rep invariant in a checkRep() method, however, you still must implement the s != null check, and make sure that your checkRep() correctly fails when s is null . Often that check comes for free from Java, because checking other parts of your rep invariant will throw an exception if s is null. For example, if your checkRep() looks like this:

private void checkRep() {
    assert s.length() % 2 == 0;
    ...
}

then you don’t need assert s!= null , because the call to s.length() will fail just as effectively on a null reference. But if s is not otherwise checked by your rep invariant, then assert s != null explicitly.

An invariant is a property that is true for the entire program – which in the case of an invariant about an object, reduces to the entire lifetime of the object.

To make an invariant hold, we need to:

• make the invariant true in the initial state of the object; and
• ensure that all changes to the object keep the invariant true.

Translating this in terms of the types of ADT operations, this means:

• creators and producers must establish the invariant for new object instances; and
• mutators and observers must preserve the invariant.

The risk of rep exposure makes the situation more complicated. If the rep is exposed, then the object might be changed anywhere in the program, not just in the ADT’s operations, and we can’t guarantee that the invariant still holds after those arbitrary changes. So the full rule for proving invariants is:

Structural induction . If an invariant of an abstract data type is

1. established by creators and producers;
2. preserved by mutators, and observers; and
3. no representation exposure occurs,

then the invariant is true of all instances of the abstract data type.
