# III.   Efficiencies of A/C Engines

In the first lecture we arrived at general expressions that related the thrust of a propulsion system to the net changes in momentum, pressure forces, etc. Now we will look at how efficiently the propulsion system converts one form of energy to another on its way to producing thrust.

Thus

## B. Thermal and Propulsive Efficiency

It is often convenient to break the overall efficiency into two parts: thermal efficiency and propulsive efficiency where

such that

hoverall = hthermal × hprop

The thermal efficiency in this expression is the same as that which we used extensively in Thermodynamics during Fall term. For an ideal Brayton cycle it is a function of the temperature ratio across the compressor.

Note that we can use our expression for thrust to rewrite the equation for propulsive efficiency in a more convenient form

Then

## C. Implications of propulsive efficiency for engine design

If we consider our expressions for thrust and propulsive efficiency together

and

we see that

as                     but

and as          and

 Also note that for

The balance between propulsive efficiency and specific thrust (~ thrust per unit mass flow) is shown in Figure 3.1.

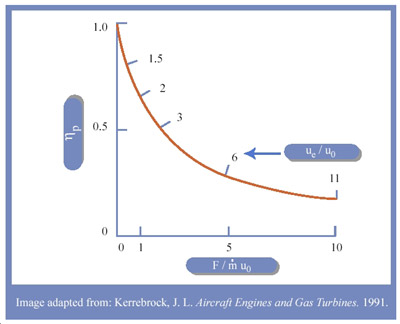

Figure 3.1 Propulsive efficiency and specific thrust as a function of exhaust velocity.

For fighter aircraft (e.g., the F-22 Raptor) that need high thrust/weight and fly at high speed, it is typical to employ engines with smaller inlet areas and higher thrust per unit mass flow

and

However, transport aircraft (e.g., the Boeing 777-200) that require higher efficiency and fly at lower speeds usually employ engines with relatively larger inlet areas and lower thrust per unit mass flow

and

At low flight velocities, the highest propulsive efficiency is typically obtained with a propeller or an unducted fan. A propeller gives a relatively small impulse (Du) to a relatively large mass flow.

Figure 3.2 An advanced, contour-rotating, unducted fan concept. Copyright Rolls-Royce plc. Reproduced with the kind permission of Rolls-Royce plc.

Figure 3.3 Propulsive efficiency comparison for various gas turbine engine configurations. Copyright Rolls-Royce plc. Reproduced with the kind permission of Rolls-Royce plc.

Q13 (PDF)

## D. Other expressions for efficiency

Sometimes the overall efficiency of aircraft engines is expressed in alternative parameters: specific impulse, I, and thrust specific fuel consumption, TSFC or just SFC. Both of these parameters have dimensions.

Specific Impulse (I or Isp):

(units of seconds)

Specific Fuel Consumption (SFC or TSFC):

(lbm/hr/lbf or kg/s/N)

## E. Trends in thermal and propulsive efficiency

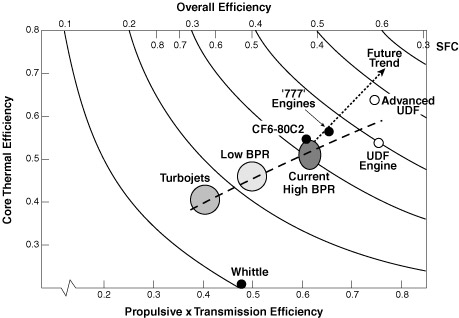

Figure 3.4 Trends in aircraft engine efficiency (after Pratt & Whitney).

Trends in thermal efficiency are driven by increasing compression ratios and corresponding increases in turbine inlet temperature as shown in Figures 3.5 and 3.6. Whereas trends in propulsive efficiency are due to generally higher bypass ratio engines.

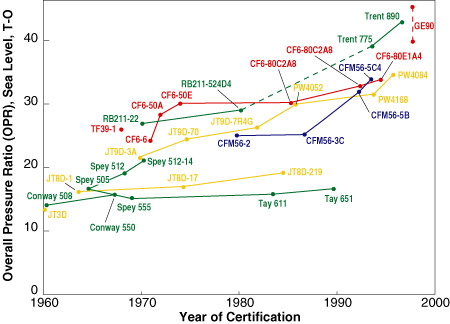

Figure 3.5 Pressure ratio trends for commercial transport engines (Epstein, 1998).

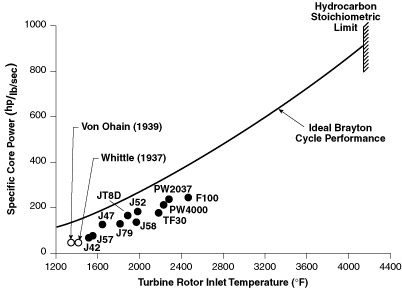

Figure 3.6 Trends in turbine inlet temperature (Koff, 1991).

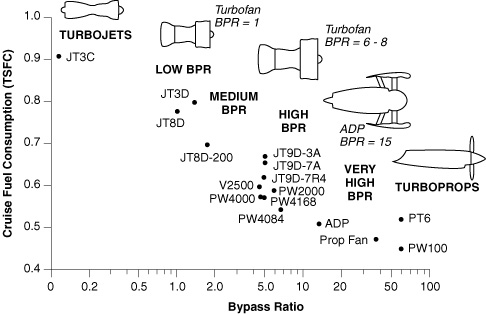

Figure 3.7 Trends in engine bypass ratio (Epstein, 1998).
