10.450 | Spring 2006 | Undergraduate

Process Dynamics, Operations, and Control


Description:

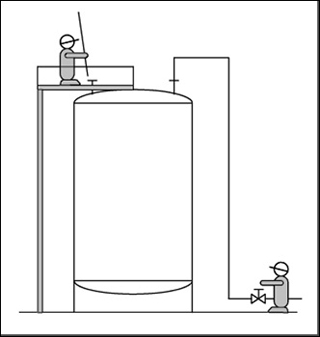

A large tank must be filled with liquid from a supply line. One operator stands at ground level to operate the feed valve. Another stands on the tank, gauging its level with a dipstick. When the tank is near full, the stick operator will instruct the other to start closing the valve. Overfilling can cause spills, but underfilling will cause later process problems. (Lesson 1 image by Dr. Barry Johnston.)

Alt text:
A simple control system.
Caption:
A large tank must be filled with liquid from a supply line. One operator stands at ground level to operate the feed valve. Another stands on the tank, gauging its level with a dipstick. When the tank is near full, the stick operator will instruct the other to start closing the valve. Overfilling can cause spills, but underfilling will cause later process problems. See Lesson 1 to find a better way! (Lesson 1 image by Dr. Barry Johnston.)
A simple control system.

Course Info

Departments
As Taught In
Spring 2006
Learning Resource Types
Lecture Notes
Problem Sets
Written Assignments
