Alt text:

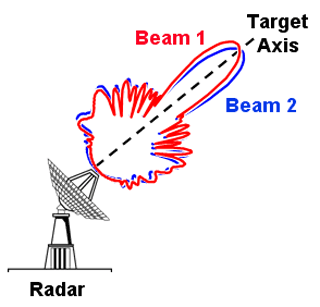

Diagram of a radar dish, projecting two identically-shaped beam patterns slightly offset from one another around a target axis.
Caption:
The sequential lobing radar, described in Lecture 9, uses a time sequence of beams directed around the track location. (Image by MIT Lincoln Laboratory. Used with permission)
