# Introduction to Civil Engineering Design

Projects

## Delta Design - The Design Task

### Introduction

Congratulations! You are now a member of an expert design team. Your collective task will be to design a new residence suitable for inhabitants of the imaginary Deltoid plane. These written materials, provided to help you prepare for this task, are organized in four sections.

The next section provides an overview of life on the Deltoid plane, DeltaP as it is known to the natives. The following section describes your team, and the final, your design task. A second handout, different for each team member, provides the specific information you will need to perform the role you have been assigned within your team. Each team member will contribute different expertise to the project, and each has different design responsibilities to fulfill. All must work together for your team to create a first-rate design.

### Life on DeltaP

Life on DeltaP, residential and otherwise, is quite different from what you have grown accustomed to here on Earth. First off, DeltaP is a plane, not a planet, so your team will be designing in two-dimensional rather than three-dimensional space. If your design “meets spec” and is considered attractive and functional by your Deltan clients, one view on a single sheet of paper will convey to those responsible for constructing it all the information they need to do so.

The view on this single sheet may not be quite what you expect, however, because in addition to lacking a z axis, Deltoid space has unfamiliar relations between the x and y axes as well. What we think of as “perpendicular” is hopelessly skewed to a Deltan, and vice-versa. In our units, a right angle on DeltaP measures 60° or π/3 radians. Thus all sides of an equilateral triangle form lines considered perpendicular to all others. If there were such a thing as a “circle” on DeltaP, it would be composed of only 4π/3 radians.

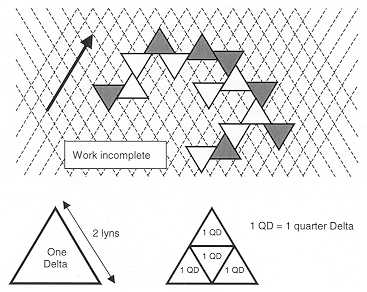

But there is no such thing as a “circle” on DeltaP, nor even the concept of continuity embodied therein. In this flat though angular world, residents construct their artifacts strictly with discrete triangular forms. Of these, the equilateral triangle – with its three perpendicular sides (!) – is considered the most pleasing. Accordingly, your team will design the residence by assembling into a cluster the most prized building materials on DeltaP, equilateral triangular components called “deltas.” Deltas come in red and blue versions and always measure 2 lyns per side. Four “quarter-deltas”, QDs, triangular units of area measure with sides of 1 lyn, fit within a delta.

Lyns? QDs? Not surprisingly, Deltan systems of measurement are as unfamiliar as that for spatial coordinates. Table 1 summarizes the measurement schemes on DeltaP that you will need to know to carry out your design task.

TABLE 1. Measurements on DeltaP

MEASUREMENT UNIT OF MEASUREMENT SYMBOL
Time Wex wx
Distance Lyn ln
Area Quarter-Delta QD
Heat Deltan Thermal Unit DTU
Temperature Degrees Nin °Nn
Force Din Dn
Moment Lyn-Din LD
Currency Zwig !

All of DeltaP’s units of measure share the divisibility and extensibility conventions of the metric system; in the measure of time, for example, there are both microwex (μwx) and megawex (Mwx). In relation to the attention-and life-spans of Deltans, these units are roughly equivalent to seconds and years, respectively, here on Earth.

As building components, deltas have functional and aesthetic characteristics that are more complex than their simple form and even dimensions would suggest. Especially when assembled into a cluster, as you will be doing, they behave in interesting ways. Deltas conduct heat among themselves, radiate heat to outer space, melt if too hot, and grow if too cool. Red deltas produce heat. All deltas are subject to DeltaP’s two-dimensional gravity (which is itself subject to axial shifts during DeltaP’s not-infrequent gravity waves). Three different kinds of cement are needed to join them together, and joint alignment with respect to gravity affects ease of production as well as structural integrity. Different colors and different quantities of deltas cost different amounts of money per delta, and can be assembled in clusters that are either exceedingly ugly or very attractive to the Deltans. Your task will be to create a design that meets prescribed goals for all of these characteristics.

### Design Team Roles and Responsibilities

Your design team is organized such that each of you will be responsible for a subset of the design goals. Some of you will be PROJECT MANAGERS. Your main concerns will be with cost and schedule, the interpretation and reconciliation of performance specifications, and negotiations with the contractor and client. You want to keep costs and time-to-build at a minimum, but not at the expense of quality. When your team submits its final design, the project manager must report the estimated cost (in zwigs) and the time (in wex) that it will take to build.

Others of you will be the STRUCTURAL ENGINEERS. Your main concern will be to see that the design “holds together” as a physical structure under prescribed loading conditions. You must see to it that the two points at which your structure is tied to ground are appropriately chosen and that continuity of the structure is maintained. When your team submits its final design, the struc-tural engineer must attest to its integrity by identifying the strongest and weakest joints, and esti-mating the average load on all joints expressed as a percentage of the failure load.

Others of you will be the THERMAL ENGINEERS. You will want to insure that the design meets the “comfort-zone” conditions specified in terms of an average temperature. You must also ensure that the temperature of all individual deltas stays within certain bounds. When your team submits its final design, the thermal engineer must estimate internal temperature and identify the hottest and coldest deltas.

Finally, one of you will be the ARCHITECT. Your concern is with both the form of the design in and of itself and how it stands in its setting. You must see to it that the interior of the residence takes an appropriate form and that egress is convenient. You should also develop a design with character. When your team submits its final design, the architect should be prepared to discuss generally how and why the Deltans will find the residence attractive and functional. The architect will also be asked to estimate a few more quantitative measures of architectural performance.

The following section describes the specifications that your design must meet to be accepted by your clients on DeltaP. Familiarize yourself with these specifications. Then, for schooling in your specialty, you will receive a tutorial to be trained in the science and technology of your domain. The information found there includes the knowledge and heuristics you will need to estimate the design parameters for which you are responsible.You should be expert in your role before your team begins the design phase.

Your Deltan clients have cleared the space shown on the site map and come to your team with their need for the design of a new residential cluster. The cluster itself must meet the following specifications.

The client wants the cluster to provide a minimum interior area of 100 QDs (Each diamond on your girded site map defines an area of two QDs). The shape of this space, which can of course exceed the minimum, is a matter of design. The client has expressed enthusiasm for the newer mode of segmenting interior space, a mode that breaks with the two-equal-zone tradition and values the suggested privacy of nooks and crannies. Still the space must be connected, i.e. no interior walls can cut the space into completely separate spaces. There must be one and only one entrance/exit.

The client is known to be color sensitive blue; too much blue brings on the blues, so to speak, and may cause patients to become depressed. No more than 60% blue ought to be allowed; certainly blue deltas are not to exceed 70% of the cluster.

The residence, as all clusters, must be anchored at two points and two points only. There is a limit to the amount of force each anchor can support, as well as to the amount of internal moment each joint can withstand. Exceeding either limit would cause catastrophic failure and send the unwary residents tumbling into the void. The cluster should be designed for a life of thirty megawex. Gravity waves, rare but always possible, should be considered.

The average interior temperature must be kept within the Deltan comfort zone, which lies between 55 and 65°Nn. The temperature of the elements themselves must be kept above the growth point of 20°Nn and below the melt-down point of 85°Nn. Delta temperatures outside of this range will result in catastrophic structural failure with little more warning than excessive load.

All of this – design, fabrication and construction – must be done under a fixed budget and within a given time period. At your team meeting you are to develop a conceptual design that meets or exceeds all design goals. When each team submits their design, individual members will be asked to report design performance on parameters for which they are responsible.

TABLE 2. Summary of Design Specifications

 Functional Internal Area 100 QD Maximum Cool Deltas (% Total) 60-70% Average Internal Temperature Range 55-65 °Nn Individual Delta Temperature Range 20-85 °Nn Maximum Load at Anchor Points 20 Dn Maximum Internal Moment 40 LD Overhead Factor -K 1.2 Total Budget !1400.00
