Description:

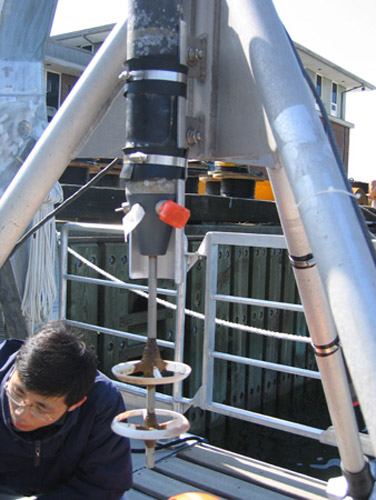

MAVS current meter with differential acoustic travel-time sensor using the two rings for transducer support. An inductive conductivity cell in orange and a stainless steel needle permit salinity and temperature to be measured. Paper towelling collects drips from the pressure sensor filled with oil on the end cap. Weichang Li looking on. Photo by Dr. Albert J. Williams 3rd.
Resource Type:
Labs
file
70 kB
Alt text:
Closeup image of sensor.
Caption:
MAVS current meter with differential acoustic travel-time sensor using the two rings for transducer support. An inductive conductivity cell in orange and a stainless steel needle permit salinity and temperature to be measured. Paper towelling collects drips from the pressure sensor filled with oil on the end cap. Weichang Li looking on.
Credit:
Photo by Dr. Albert J. Williams 3rd.
