ES.293 | Spring 2007 | Undergraduate

Lego Robotics

Image Gallery


Description:

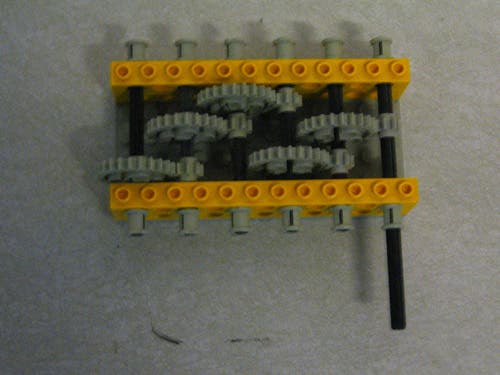

A sample gear box with a 1 to 243 gear ratio.

Alt text:
A gearbox with six shafts, each containing a small gear matched to a large one.
Caption:
A sample gear box with a 1 to 243 gear ratio.
Credit:
Photo by MIT OpenCourseWare.
A gearbox with six shafts, each containing a small gear matched to a large one.
