6.033 | Spring 2018 | Undergraduate

Computer System Engineering

Week 6: Networking Part II

Lecture 11 Outline

  1. Introduction
    • Last week: How to route scalably in the face of policy and economy.
    • This week: How to transport scalably in the face of diverse application demands.
  2. TCP
    • Goals: Provide reliable transport, prevent congestion.
    • Broader questions: How do we do this scalably, and how do we share the network efficiently and fairly?
    • Today: TCP Congestion Control
      • In particular, a version of TCP known as “New Reno.”
    • Next lecture: An alternative approach to “resource management” on the Internet.
  3. Reliable Transport via Sliding-Window Protocol
    • Goal: Receiving application gets a complete, in-order bytestream from the sender. One copy of every packet, in order.
    • Why do we need it? Network is unreliable. Packets get dropped, can arrive out-of-order.
    • Basics:
      • Every data packet gets a sequence number (1, 2, 3, …).
      • Sender has W outstanding packets at any given time. W = window size.
      • When receive gets a packet, it sends an ACK back. ACKs are cumulative: An ACK for X indicates “I have received all packets up to and including X.”
      • If sender doesn’t receive an ACK indicating that packet X has been received, after some amount of time it will “timeout” and retransmit X.
        • Maybe X was lost, its ACK was lost, or its ACK is delayed.
        • The timeout = proportional to (but a bit larger than) the RTT of the path between sender and receiver.
      • At receiver: Keep buffer to avoid delivering out-of-order packets, keep track of last-packet-delivered to avoid delivering duplicates.
  4. Main Motivation
    • What’s the “right” value for W?

    • In particular, what if there are multiple senders?

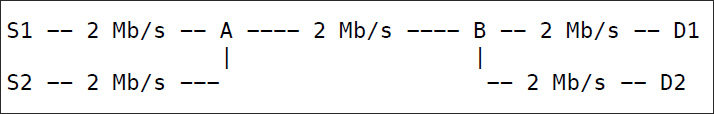

      • Ex:
      Diagram of packet transmission with 2 Mb/s window.
      • What should happen? Debatable. Reasonable alternative:
      Diagram of packet transmission with 1 Mb/s window.
      • How do S1 and S2 figure this out? What happens if S3 arrives? Or if S1 starts sending less? Etc.
  5. Congestion Control: Controlling the Source Rate to Achieve High Performance
    • Goals: Efficiency and fairness.
      • Minimize drops, minimize delay, maximize utilization.
      • Share bandwidth fairly among all connections that are using it.
    • FOR NOW: Assume all senders have infinite offered load. Fairness = splitting bandwidth equally amongst them.
    • But no senders knows how many other senders there are, and that number can change over time.
    • We’ll use window-based congestion control. Switches are dumb (can only drop packets); senders are smart.
  6. AIMD
    • Need a signal for congestion in the network, so senders can react to it.
    • Our signal: Packet drops
    • Every RTT:
      • If there is no loss, W = W+1
      • If there is loss, W = W/2
    • This is “Additive Increase Multiplicative Decrease” (AIMD)
    • Senders constantly readjust => adapt to a changing number of senders, or changing offered loads
    • Window size exhibits sawtooth behavior (see slides)
    • Why AIMD?
      • It’s “safe”: Senders are conservative about increasing, but scale back dramatically in the face of congestion
      • Efficient and fair
  7. Finite Offered Load
    • Remove the assumption that everyone has infinite offered load
    • Suppose S1 and S2 have offered load of 1Mb/s, S3 has offered load of .5Mb/s, and they all share a bottleneck with capacity 2Mb/s
    • What happens?
      • In theory: S3 stops increase once it’s sending .5Mb/s. S1 and S2 continue increasing until they reach .75Mb/s
    • Is this fair?
      • In some sense. It achieves a type of fairness known as “max-min fairness”. But there are other definitions (e.g., “proportional fairness”)
    • What happens in practice?
      • We might get max-min fairness, or one of the senders might experience a much longer RTT and so not increase its window at the same rate.
    • So: TCP’s congestion control utilizes the network reasonably well, but it’s hard to measure fairness, or claim that fairness is achieved under skewed workloads, varying RTTs, etc.
  8. Additional Mechanisms
    • Slow Start

      • At the beginning of the connection, exponential increase the window (double it every RTT until you see loss).
      • Decreases the time it takes for the initial window to “ramp up.”
      • (See slide for diagram)
    • Fast Retransmit/Fast Recovery

      • When a sender receives an ACK with sequence number X, and then three duplicates of that packet, it immediately retransmits packet X+1 (remember: ACKs are cumulative).


                Send    1 2 3 4 5 6
                    Receive 1 2   2 2 2

            Sender receives 4 ACKs total with sequence number “2”; infers that packet 3 is lost, immediately retransmits.

      • On fast-retransmit, window decrease is as before: W = W/2.
      • In fact, when a packet is lost due to timeout, TCP behaves differently: W = 1, then do slow-start until the last good window and then start additive increase.
      • (See slide for diagram)
      • Reasoning: If there is a retransmission due to timeout, then there is significant loss in the network and senders should back *way* off.
  9. Reflection
    • TCP has been a massive success, requires no changes to the Internet’s infrastructure, is something endpoints can opt-in to, allows the network to be shared among tons of different users, all with different—and changing—types of traffic, in a distributed manner.
    • BUT: TCP doesn’t react to congestion until it’s already happening. Is there something better we could do?
